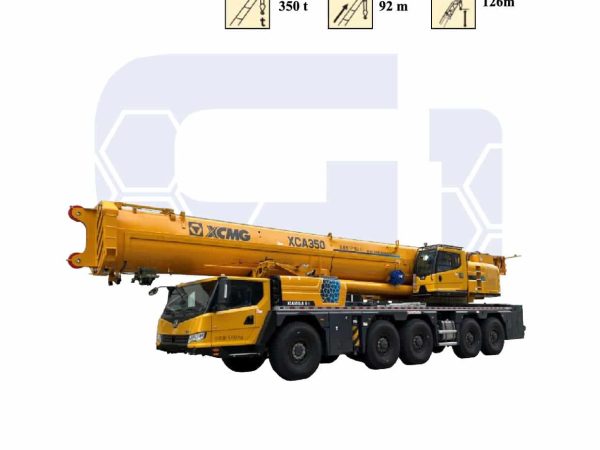

XCMG XCA350L8

Mobile Crane

The XCMG XCA350L8 is a formidable all-terrain crane with a remarkable capacity of 350 tons. Its design, based on 5 axles, provides stability and maneuverability, making it suitable for a wide range of lifting applications in challenging terrains.

One of the standout features of the XCA350L8 is its impressive main boom length of 92 meters. This extensive reach allows the crane to access and lift loads in diverse and demanding construction environments. Whether it’s for high-rise construction or other heavy-duty lifting tasks, the crane’s long boom contributes to its versatility and utility.

In summary, the XCMG XCA350L8 combines a substantial lifting capacity with a generous main boom length, making it a powerful and adaptable solution for large-scale construction projects requiring both strength and reach.

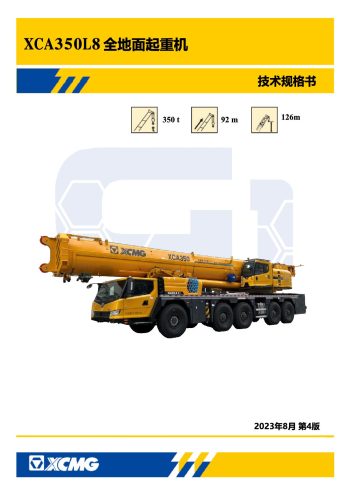

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The XCMG XCA350L8 is a high-capacity 350-ton all-terrain crane that combines strength, versatility, and advanced technology. Built with a sophisticated eight-axle chassis, this crane offers enhanced maneuverability and stability, making it suitable for a range of challenging lifting tasks in diverse environments.

Chassis and Axles

The crane’s eight-axle configuration is equipped with multiple steering modes to ensure smooth navigation through tight spaces and complex terrain. The chassis is constructed with a full-coverage structure and reinforced materials, providing durability and high ground clearance. The suspension system features hydraulic outriggers with horizontal and vertical extension capabilities, supporting a stable lifting platform.

Boom and Jib Configurations

The XCA350L8 features a telescopic main boom with a maximum length of 92 meters, providing significant reach for a variety of lifting tasks. The crane also offers multiple jib attachments, including a fixed jib and luffing jib, to extend its operational range. The main boom sections are designed with “U” profiles and high-strength steel for optimized lifting performance.

Engine and Performance

This model is powered by a high-performance WP13.550E62 engine, delivering 405 kW of output at 1,900 rpm, while the secondary engine option provides 412 kW at 1,900 rpm. Both engines meet national emission standards, offering efficiency and reduced environmental impact. The crane has a maximum traveling speed of 80 km/h, and the gradeability reaches up to 40%, allowing it to handle slopes and uneven surfaces with ease.

Hydraulic and Control Systems

The crane employs advanced hydraulics for smooth and precise control of lifting operations. The multi-section boom is supported by a double-winch system, with maximum rope speeds of 140 m/min. The cabin is ergonomically designed, with a 7-inch display for monitoring crane functions and load management systems.

Safety Features

Key safety features include a load moment limiter, anti-sway systems, and emergency stop functions, ensuring safe operation during complex lifts. Additionally, the crane is equipped with multiple braking systems and locking mechanisms for enhanced stability and control.

Dimensions and Transport

For transport, the crane’s dimensions can be adjusted by retracting the outriggers and folding the booms. The maximum transport length is approximately 16 meters, allowing for ease of movement between job sites.

Overall, the XCMG XCA350L8 combines cutting-edge technology with rugged construction to deliver a powerful, adaptable lifting solution for large-scale projects.
