Mobile Crane

XCMG XCA700

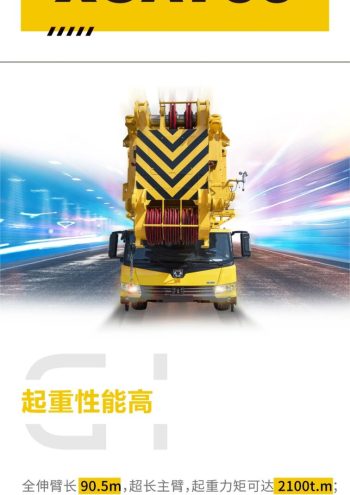

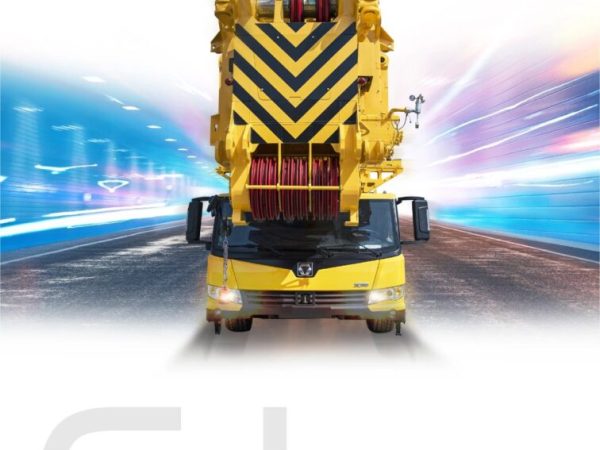

The XCMG XCA700 is a colossal mobile crane that brings extreme lifting power to the construction site with a capacity of 700 tons. It combines cutting-edge engineering with practical design, featuring a main boom length of up to 90.5 meters. Its super lifting torque and impressive reach make it a standout choice for heavy-duty lifting operations. The XCA700’s advanced technology is evident in its powerful performance and operational efficiency, tailored for both challenging terrains and high-demand lifting tasks.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Dimensions and Capacity

Overall Dimensions (L×W×H): 19850×3000×4000 mm
Total Weight: 84000 kg
Main Boom Length: 90.5 m
Maximum Lifting Capacity: 700 t
Fixed Jib Length: 51 m
Luffing Jib Length: 90.5 m

Engine and Powertrain

Engine Model: (Benz Chassis) OM473LA.6-57
Power Output: 481 kW at 1600 rpm
Torque: 3100 Nm at 1100 rpm
Maximum Travel Speed: 80 km/h
Gradeability: 44%
Total Lifting Torque: 21000 kN.m
Single Line Speed of Main Winch (No Load): 130 m/min

Performance and Features

Advanced Boom Technology

The XCA700 boasts the latest in boom technology with its 90.5-meter main boom. This allows for exceptional reach and precision in lifting operations, particularly in projects that require an extended radius.

Super Lifting Capacity

With a maximum lifting capacity of 700 tons, the XCA700 is designed for heavy industrial applications. Its fixed and luffing jib extensions further enhance its versatility, enabling complex and heavy lifts that many other cranes cannot manage.

Engine and Power

The XCA700 is powered by a robust Benz engine, which delivers high power and torque, essential for the operation of such a substantial lifting machine. The efficient powertrain ensures that the crane can travel and operate smoothly across various conditions.

Mobility and Speed

The ability to travel at speeds of up to 80 km/h and a gradeability of 44% make the XCA700 highly mobile and adaptable to different working environments, including rough terrain.

Lifting Torque and Winch Capabilities

An impressive total lifting torque of 21000 kN.m allows the XCA700 to handle immense weights with ease. The winch system is capable of a high single line speed, facilitating quicker and more efficient lifting operations.

The XCMG XCA700 mobile crane epitomizes strength and technological advancement, setting new standards in the lifting industry for capability and performance. Whether it’s for infrastructure projects, industrial applications, or construction tasks, the XCA700 is designed to deliver unmatched lifting power and reliability.
