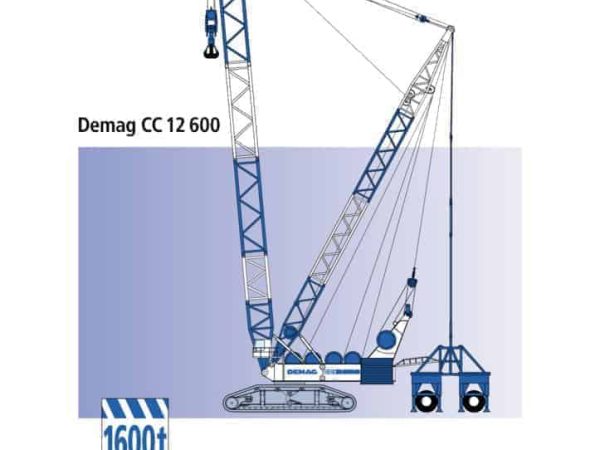

Demag CC 12600

The Demag CC 12600 is one of the most powerful crawler cranes in the world, boasting an impressive maximum lifting capacity of 1600 metric tons. Specifically engineered for the largest and most demanding lifts in sectors like petrochemical, offshore module installation, power plants, and bridge construction, the CC 12600 is designed around a robust lattice boom system that offers a broad array of configurations to adapt to complex site requirements.

The crane features a main boom system extendable from 54 to 108 meters with Superlift (SSL) configuration, allowing it to achieve maximum capacities of 1600 tons at close radii (12-16 meters). For extended reach and height, the CC 12600 can be equipped with luffing fly jibs (SWSL/LWSL) up to 108 meters in combination with main boom lengths, providing flexible working ranges and significant lifting capacity even at large radii.

Its hoisting system includes multiple drums capable of rope speeds up to 69 m/min, using 54 mm diameter hoist ropes with single line pulls up to 545 kN. The swing system offers smooth 360° rotation with slewing speeds of up to 0.45 rpm, while heavy-duty planetary drives provide reliable performance under massive load conditions.

The CC 12600 features a hydraulically assembled modular track system with a track gauge of 12.2 meters for exceptional stability. The machine uses advanced Superlift counterweight carrier systems with a capacity of up to 1500 tons, optimizing lifting performance at large radii while reducing ground pressure.

Safety and structural integrity are paramount in the CC 12600 design. The crane is compliant with DIN 15019.2 standards and includes load moment limitation, Superlift mast, sophisticated monitoring systems, and programmable lift charts for complex multi-part lifts. The operator’s cab offers clear instrumentation, ergonomic controls, and monitoring systems for hoist, boom, and swing parameters, providing the operator with precise control over massive lifts.

With its combination of brute lifting power, flexible boom and jib configurations, advanced counterweight systems, and robust safety features, the Demag CC 12600 remains a preferred choice for super heavy lift projects where reliability, scale, and precision are critical.
