Terex American HC 50

Crawler Crane

Terex American HC 50 is a 50 US ton rated capacity crawler crane with a maximum boom length of 160 ft (48.8m).

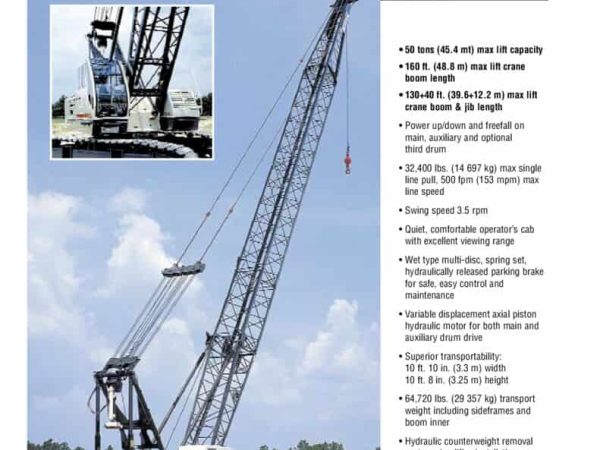

Download Load Chart Here

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

Features

50 tons (45.4 mt) max lift capacity
160 ft. (48.8 m) max lift crane boom length
130+40 ft. (39.6+12.2 m) max lift crane boom & jib length
Power up/down and freefall on main, auxiliary and optional third drum
32,400 lbs. (14 697 kg) max single line pull, 500 fpm (153 mpm) max line speed
Swing speed 3.5 rpm
Quiet, comfortable operator’s cab with an excellent viewing range
Wet type multi-disc, spring set, hydraulically released parking brake for safe, easy control and maintenance
Variable displacement axial piston hydraulic motor for both main and auxiliary drum drive
Superior transportability: 10 ft. 10 in. (3.3 m) width 10 ft. 8 in. (3.25 m) height
64,720 lbs. (29 357 kg) transport weight including side frames and boom inner
A hydraulic counterweight removal system simplifies installation and removal
