Kato NK-400E-III

The Kato NK-400E-III is a 40-ton fully hydraulic truck crane featuring a 4-section full power boom ranging from 11 to 36 meters, supported by a robust 8×4 carrier. It offers reliable slewing, efficient hoisting with Freomatic winches, and powerful diesel engine options including Mitsubishi and Nissan variants. Built for high performance and durability, it meets the demands of modern construction and logistics work.

GET SPEC SHEET

somdn_product_page
yes here
Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

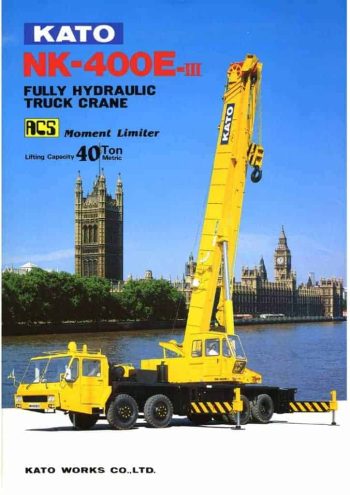

thumbnail of NK400E-3_catalog_en

Product Description

The Kato NK-400E-III is an evolution of Kato’s 40-ton fully-hydraulic truck crane series, continuing its legacy with reinforced lifting performance, safety, and operator comfort. It features a 4-section “Full Power” boom extending from 11 to 36 meters, offering impressive reach for various lifting tasks. A fly jib ranging from 8.5 to 13.5 meters is also available, expanding the working height and flexibility further.

Equipped with a hydraulic system that enables smooth, fast, and precise operation, the NK-400E-III is fitted with Kato’s signature “Freomatic” winch system. Both the main and auxiliary winches are capable of high-speed lifting at 91.5 m/min and low-speed hoisting at 41.7 m/min, enhancing job site productivity. Slewing is handled by a Glide-Master planetary slewing mechanism, offering 1.64 rpm of controlled rotational movement aided by a hydrostatic brake.

For powertrain configurations, the NK-400E-III is available with two chassis options: the Mitsubishi K354LK3 and the Nissan Diesel KG53TXL.
The Mitsubishi version is powered by the 8DC8-2A diesel engine delivering 290 PS at 2300 rpm, and 99 kg·m torque at 1400 rpm. It achieves a max speed of 75 km/h and features an 8×4 drivetrain with a 10-forward/2-reverse synchro transmission system.
Alternatively, the Nissan version comes with the RE8 engine producing 315 PS and 105 kg·m torque, offering slightly more output with a 68 km/h max speed. Both configurations use reverse “ELLIOTT” type axles in the rear and semi-elliptic front suspensions for optimal load distribution and ride stability.

The carrier includes rugged extendable outriggers with a maximum span of 6600 mm, ensuring firm stability even in uneven terrain. The crane’s cab is outfitted with safety glass windows, reclinable seat, and well-positioned control levers for fatigue-free, all-day operation. Additionally, safety features include an optional A.S.L.I (Automatic Safety Load Indicator), which warns operators of overload risks and disables hydraulic power to prevent unsafe operation.

With a gross weight of approximately 38,800 kg for the Mitsubishi chassis and 35,700 kg for the Nissan variant, the NK-400E-III stands as a robust, field-proven solution for medium-heavy lifting applications. Its blend of power, reach, safety, and ergonomic design makes it a popular choice for civil construction, steel erection, and infrastructure deployment.
