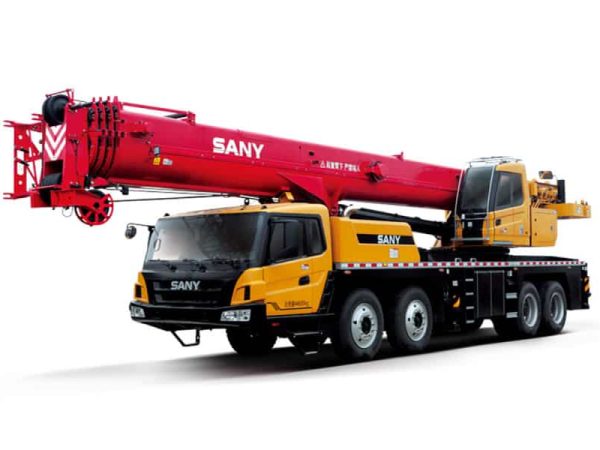

SANY STC550T5-1
STC550T5-1 truck crane has cross-level comprehensive hoisting performance, 47.5m U-shaped 5-section main arm, maximum lifting height of 63.5m, maximum lifting moment of 2254KN m, and a maximum hoisting load of a fully extended boom of 11t.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Advertisement
Product Description
|
Maximum Lifting Height |
64m |
|
Maximum lifting moment |
2254kN·m |
|
Maximum weight |
55t |
|
speed parameter |
|
|
Maximum single rope speed of main winch |
145m/min |
|
Boom full extension/retraction time |
100/110s |
|
Boom full up/down time |
50/70s |
|
Maximum rotation speed |
2.0r/min |
|
weight parameter |
|
|
Total weight of the whole machine |
44600kg |
|
Maximum counterweight |
14t |
|
Size parameters |
|
|
Overall length |
14670mm |
|
Machine full width |
2800mm |
|
Overall height |
3820mm |
|
Outrigger span (horizontal x vertical) |
7.7×6.28m |
|
Dynamic parameters |
|
|
engine model |
Weichai WP9H336E62 |
|
engine power |
247/1900kW/rpm |
|
Engine maximum output torque |
1600/(1000-1400)N·m/rpm |
|
Driving parameters |
|
|
top speed |
90km/h |
|
Minimum turning radius |
12m |
|
Maximum grade |
0.45 |
|
Approach angle |
17° |
