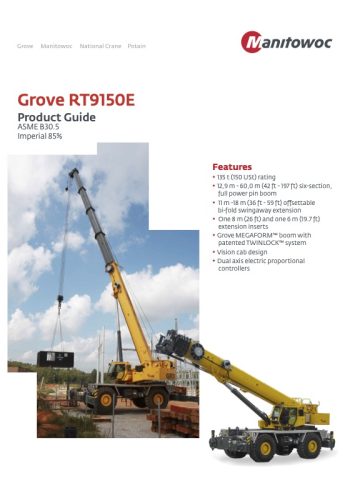

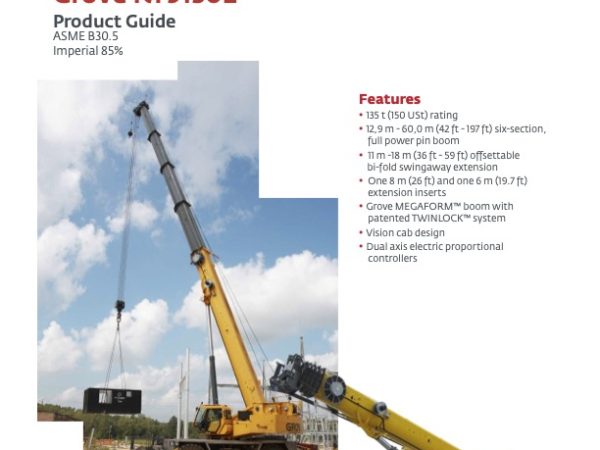

Grove RT9150E

The Grove RT9150E is one of the most powerful and versatile rough terrain cranes in its class, with a lifting capacity of 150 US tons (135 metric tons). The crane is designed to handle heavy lifting tasks in rough terrain environments with its robust six-section boom, which extends from 42 ft to 197 ft (12.9 m to 60 m). The full-power pin boom uses Grove’s MEGAFORM™ design and TWINLOCK™ system, which provides excellent strength and stability, while reducing weight to enhance lifting performance.

For additional reach, the RT9150E offers an optional 11 m to 18 m (36 ft to 59 ft) bi-fold swingaway extension, with the ability to offset at angles of 0°, 15°, and 30°. Combined with the main boom, this setup provides a maximum tip height of 268 ft (81.7 m), making the crane suitable for high-rise construction and other demanding lifting operations. The crane also includes boom inserts—one 8 m (26 ft) and one 6 m (19.7 ft)—for further flexibility in configurations.

Lifting and Boom Features:

• Maximum boom length: 197 ft (60 m)
• Maximum tip height with extensions: 268 ft (81.7 m)
• Boom design: Grove’s MEGAFORM™ for improved performance and reduced boom deflection.
• TWINLOCK™ system: Pinning system that enhances boom stability and reduces setup time.

Engine and Performance:

The Grove RT9150E is powered by a high-performance engine that provides ample power for lifting operations, while maintaining fuel efficiency. The engine supports both crane operations and travel functions, ensuring reliable performance on challenging terrains.

Hoist and Winch:

The crane features dual axis electric proportional controllers, which allow precise control over all lifting operations, ensuring that operators can handle loads smoothly and efficiently. The hoisting system includes a powerful winch with high line-pull capabilities, making it suitable for heavy-duty lifting tasks.

Operator Comfort and Safety:

The RT9150E features Grove’s Vision Cab design, which provides excellent visibility, reducing blind spots during operation. The cab is equipped with dual-axis electric proportional joysticks for ergonomic control of crane functions, along with advanced safety features such as an anti-two-block system, load moment indicator (LMI), and swing-away controls for smooth operation. The cab design enhances operator comfort during long workdays with its adjustable seating and climate control options.

Mobility and Steering:

The RT9150E is designed for rough terrain, featuring four-wheel drive and four-wheel steering for superior mobility. It can switch between multiple steering modes—front-wheel, four-wheel coordinated, and crab steering—allowing operators to navigate tight spaces and difficult job sites. The crane’s high ground clearance and heavy-duty tires further enhance its capability on uneven or off-road terrain.

Key Features:

• Max lifting capacity: 150 US tons (135 metric tons)
• Boom length: 42 ft to 197 ft (12.9 m to 60 m)
• Tip height (with extension): 268 ft (81.7 m)
• Extensions: Optional 11 m to 18 m (36 ft to 59 ft) bi-fold swingaway with offset options
• Steering modes: Front-wheel, four-wheel, crab steering
• Cab design: Vision cab with ergonomic controls and enhanced visibility

The Grove RT9150E is designed for large-scale construction, industrial projects, and other heavy-duty lifting tasks. Its combination of long reach, high lifting capacity, and advanced boom technology makes it a top choice for operators seeking performance and reliability in demanding environments.
