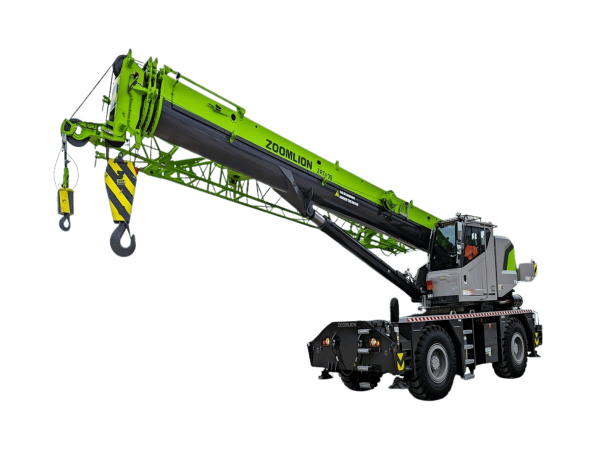

Zoomlion ZRT400V

Zoomlion ZRT400V is a 40-tonne rated capacity rough terrain crane with a maximum boom length of 33m and a maximum jib length of 14m.

Features

  • Strong lifting performance
    • 33m long large U-shaped section main boom
    • Four-wheel multi-mode steering, max. speed 38km/h, max. gradeability is 55%
  • Stable and reliable
    • DONGFENG Cummins engine + DANA transmission + Meritor axles
    • Mature modular design guarantees its reliability
  • Comfortable and durable
    • New generation panoramic cab with front sliding window and panoramic skylight
    • Optimized layout with human-friendly design in driver’s cab, enables convenient and comfortable operation

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Boom Length

33

Max. Jib Length

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

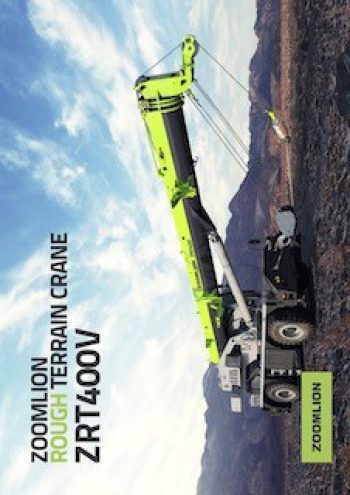

thumbnail of ZRT400V432_spec_mt_en
ZRT400V | Metric | EN

Product Description

Type Items Unit Value
Working performance Max   lifting capacity × Working radius kg.m 40000×2.5
Max   lifting moment of basic boom kN.m 1305
Max   lifting moment of main boom fully extended kN.m 792
Max   lifting height of main boom m 33.9
Maximum   lifting height of jib m 47.8
Dimension Dimension (L×W×H) mm 12360×2690×3650
Outrigger   span(V×H) mm 6500×6400
Main boom   length(fully retracted~extended) mm 10200~33000
Jib   length(1 jib/ 2 jib) mm 8200~14000
Main boom   angle ° -2~80
Slewing   range 360°
Working speed Max speed   of single rope of main winch m/min 145
Telescoping   out time s 50
Telescoping   in time s 45
Derricking   up time s 45
Derricking   down time s 60
Slewing   speed r/min 0~2.8
Hydraulic system Rated   working pressure MPa 28
tank   capacity L 650
Mess Dead   weight kg 31000
Front   axle load kg 15900
Rear axle   load kg 15100
Driving parameter Max   driving speed(Forward / backward) km/h 38/38
wheelbase mm 3700
Track   width (front / rear) mm 2170
Gradeability % 55
