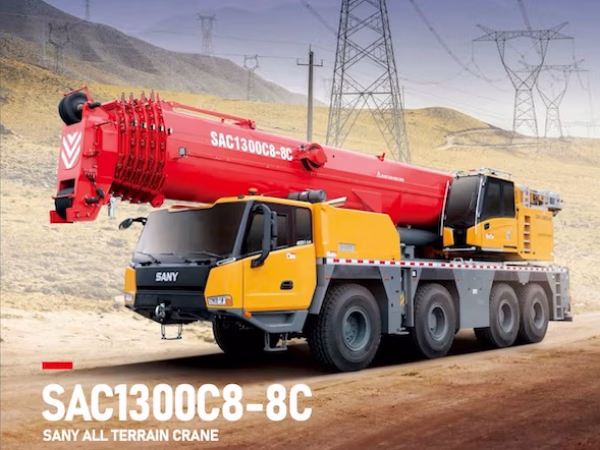

Sany SAC1300C8-8C

The Sany SAC1300C8-8C is a 130-ton all-terrain crane designed to handle demanding lifting operations with exceptional efficiency, safety, and adaptability. Its 8-section telescopic U-shaped main boom extends to 72 meters, providing excellent reach and flexibility. The optional fixed jib, with lengths ranging from 9.4 to 29.5 meters and adjustable angles of 0°, 15°, and 30°, increases the maximum lifting height to an impressive 136.6 meters.

Key Features and Capabilities:

• Superior Lifting Performance:
  Equipped with a high-performance hydraulic system, the SAC1300C8-8 offers smooth and precise lifting operations. The crane integrates a multi-pump and multi-circuit design with proportional control, ensuring accurate load handling and efficiency. Its electric load-sensitive valve system allows dynamic power matching, achieving high efficiency for heavy-duty operations. The main winch offers a maximum rope speed of approximately 140 m/min, supporting fast and reliable operation.
• Excellent Travel Performance:
  The crane uses a reinforced four-axle chassis with all-wheel steering and a standard HANDÉ four-axle drive (with an optional KESSLER drive). It offers multiple steering modes, including on-road, all-wheel, crab, and rear-axle steering, ensuring excellent maneuverability and adaptability on diverse terrains. The intelligent hydro-pneumatic suspension system with active damping provides real-time vehicle posture monitoring, ensuring optimal stability and comfort during transport and lifting operations. The maximum travel speed is 80 km/h, and it can handle slopes with a gradeability of 70%.
• Chassis and Powertrain:
  The SAC1300C8-8 is powered by a 338 kW WP12.460E62 inline 6-cylinder diesel engine, generating a maximum torque of 2200 Nm at 1000–1400 rpm. The engine complies with China IV emission standards, ensuring eco-friendly operation. Paired with a FAST automatic transmission, the crane features 12 forward speeds and 2 reverse speeds, making it capable of high-speed travel and smooth off-road performance.
• Hydraulic System and Steering:
  Its hydraulic system features load-sensing technology, achieving energy savings through constant power control and automatic load adjustment. The crane supports six steering modes, including crab steering and independent front/rear axle steering, which enhances maneuverability in confined spaces and complex terrains.
• Safe and Reliable:
  The SAC1300C8-8 is equipped with advanced safety features, including a wireless remote control system for easy operation, a high-precision load moment indicator, and a suite of sensors for real-time status feedback. Its jib features third-row indicators to prevent over-hoisting, while its boom head is equipped with A2B switches to prevent wire rope overwinding.
• Operator Comfort and Convenience:
  The cabin is ergonomically designed with a tiltable operator seat, advanced control systems, heating, and cooling for maximum comfort. The multi-screen interface provides real-time data, enhancing operational precision and reducing fatigue during extended work hours.
• Additional Features:
  The crane incorporates an H-type two-stage telescopic outrigger system with remote control, allowing easy setup and leveling. The counterweight system offers variable combinations (up to 31 tons) to adapt to different working conditions, ensuring maximum stability during heavy lifts.

The Sany SAC1300C8-8C delivers a reliable, high-performance lifting solution with a balance of power, efficiency, and safety. It is ideal for infrastructure projects, energy sector lifts, and heavy-duty industrial applications.
