Sany SAC1300T7 Load Chart PDF + Specifications

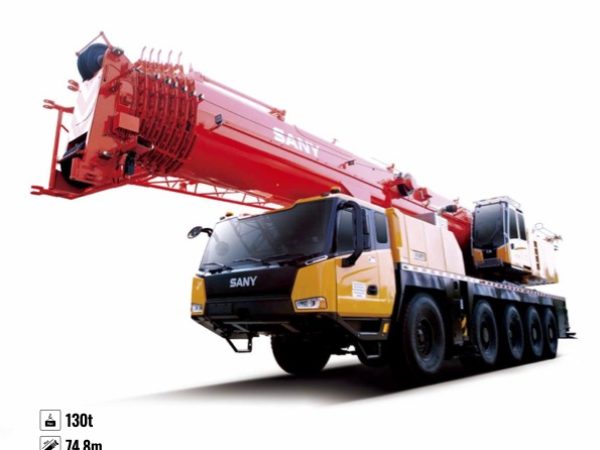

The SANY SAC1300T7 is a high-performance 130-ton class mobile crane engineered for advanced lifting operations in construction, infrastructure, and heavy industrial applications. Designed to operate in varied terrains and conditions, it combines extensive lifting capability with modern powertrain technology, operator comfort, and robust mobility.

At the core of the SAC1300T7’s lifting system is a 7-section, 74.8-meter main boom, constructed with an oval cross-section for strength and optimized weight. The boom’s telescopic design ensures precise extension and reliable stability during high-reach operations. To enhance its working range, the crane includes a standard 18-meter jib, with optional 8-meter extensions, enabling configurations that support long-reach or offset lifts, ideal for roof work, bridge structures, or confined site applications.

The crane employs a dual-engine system that separates travel and lifting functions for increased efficiency and fuel savings. The chassis is powered by a Mercedes-Benz OM460LA.E3A engine, while the superstructure uses a Cummins QS6.7-C260 engine dedicated to crane functions. Paired with a ZF AMT transmission and hydraulic retarder, this setup reduces fuel consumption by approximately 30% compared to conventional single-engine hydraulic systems—resulting in lower operating costs and reduced environmental impact.

The SAC1300T7 is mounted on a 5-axle all-terrain carrier equipped with hydro-pneumatic suspension and H-type outriggers. It offers six steering modes for optimal maneuverability in constrained environments, and boasts a minimum turning radius of just 8.5 meters. The crane can reach maximum road speeds of 80 km/h, and tackle slopes with a gradeability of 46%, making it highly mobile between and within job sites.

Operator comfort and ease of use are prioritized through the iCab operator system, which includes a multi-function air-suspension seat, a 10.1-inch integrated touchscreen, and an ergonomic dashboard layout. The cab also features a rearview mirror with electric heating, automatic HVAC, and high-brightness LED headlamps, ensuring safe and comfortable working conditions in all environments.

In terms of safety and structural stability, the SAC1300T7 includes 42 tons of counterweight, strategically distributed to maintain axle load balance during transport and lifting. The crane also features high-reliability harness wiring and intelligent control systems for real-time monitoring, improving operational safety and reducing diagnostic downtime.

Physically, the crane measures 16,000 mm in overall length, 2,800 mm in width, and 4,000 mm in height, with a gross vehicle weight of 58,000 kg. These dimensions and its transport-friendly modular components ensure the SAC1300T7 can be moved efficiently between jobs while complying with transport regulations.

The SANY SAC1300T7 is a modern, high-capacity lifting solution that blends mechanical strength, digital integration, and user-centered design—making it a reliable workhorse for mid-to-heavy lift demands across construction and industrial applications.
