Sany SAC2600T8

Mobile Crane

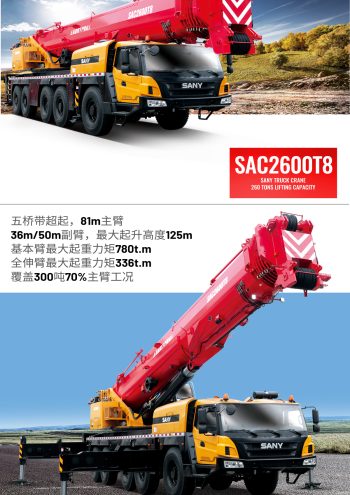

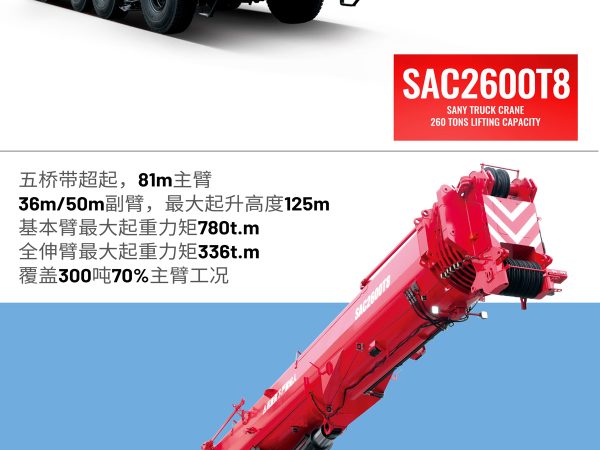

The Sany SAC2600T8 is a robust 260-ton all-terrain crane, equipped with advanced features designed for efficiency and high-performance lifting capabilities. It features a maximum lifting moment of 7644 kN·m and an impressive boom length, making it ideal for large-scale construction and engineering projects.

Download Load Chart Here

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

Performance Specifications

Maximum Lifting Capacity: 260 tons, facilitating major construction tasks.
Maximum Lifting Moment: 7644 kN·m, indicating the crane’s ability to handle significant loads.
Maximum Boom Length: Extends to 81 meters, providing substantial reach and versatility.
Maximum Jib Length: Reaches up to 48 meters, enhancing the crane’s operational scope.

Operational Capabilities

Counterweight: 90 tons, ensuring stability and support for maximum capacity lifting.
Maximum Travel Speed: 80 km/h, allowing for swift site-to-site relocation.
Minimum Turning Radius: 10 meters, enabling better maneuverability in confined spaces.
Maximum Climbing Gradient: 58%, demonstrating strong performance on steep inclines.

Speed and Efficiency

Main Winch: Maximum single rope speed of 125 m/min for efficient lifting operations.
Boom Operations: Full extension and retraction times are 750 seconds, with lifting and lowering times of 65 and 115 seconds respectively.
Giant Slalom Speed: Achieves up to 1.5 rotations per minute, enhancing operational speed.

Structural and Dimensional Parameters

Machine Dimensions: Measures 15.88 meters in length, 3 meters in width, and 4 meters in height.
Outrigger Span: Spreads to 9.47 x 8.3 meters, providing excellent stability.

Power and Drive

Engine Model: WP13.550E62, designed for high power output and efficiency.
Engine Power: Reaches up to 405 kW at 1900 rpm.
Maximum Engine Torque: Delivers 2500 N·m at a range of 950 to 1400 rpm, ensuring powerful and responsive operation.

This crane’s combination of high lifting capacity, extensive reach, and mobility features makes the Sany SAC2600T8 a powerful asset for handling complex lifting tasks in a variety of terrains and project demands.
