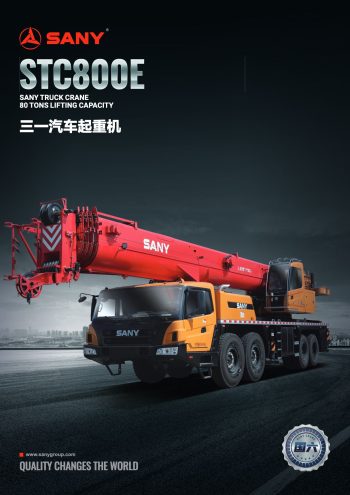

Sany STC800E

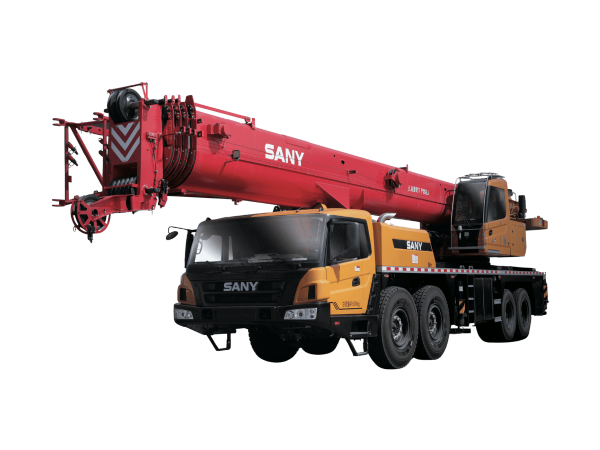

The SANY STC800E represents the 80-ton class in SANY’s truck-mounted hydraulic crane lineup, offering a balance of strong lifting performance, structural efficiency, and transport-friendly design. At the heart of its lifting system is a 5-section fully hydraulic telescoping main boom constructed from high-strength U-type steel. The boom can extend from 12 meters to a maximum of 49.5 meters, providing a wide working range and excellent load handling across different radii.

Supporting the main boom is a jib system that begins at 9.5 meters and can be extended to 17.5 meters in its full configuration. With this combination, the STC800E achieves a maximum lifting height of 76.5 meters, making it suitable for multi-story building projects, tower installation, and equipment hoisting in energy facilities. The maximum working radius extends to 48 meters, providing considerable horizontal reach.

Mounted on a robust 4-axle truck chassis (8×4 drive), the STC800E is powered by a Weichai D13 Euro V compliant engine delivering 316 kW at 1900 rpm. It is paired with a 10-speed manual transmission (10 forward, 2 reverse) to ensure smooth and efficient driving both on-road and off-road. The crane achieves a maximum traveling speed of 85 km/h, making it well suited for regional jobsite transfers without requiring special transport logistics.

The outrigger system provides full-span stability with a longitudinal width of 7.6 meters and lateral extension of 7.4 meters. These hydraulically operated outriggers offer a strong and stable base during lifting operations. The crane features dual winches—main and auxiliary—each driven by a hydraulic motor, with maximum line speeds reaching 120 m/min. This ensures fast hook travel and efficient cycle times.

The boom elevates from -1° to +82°, with quick response hydraulic cylinders. The slewing system, driven by a hydraulic motor and planetary reducer, allows 360° continuous rotation at speeds of up to 2 rpm, and is equipped with braking and locking functions for added safety.

From a structural standpoint, the overall vehicle length is 14.08 meters, with a width of 2.8 meters and a height of 3.74 meters. The crane has a total gross weight of approximately 48,000 kg, and its compact 12-meter turning radius, along with approach and departure angles of 20° and 12°, allow it to maneuver efficiently in tight or uneven workspaces.

The operator’s cab is ergonomically designed with wide visibility and integrates a digital load moment indicator system, which displays real-time crane parameters, including boom angle, load weight, and outreach. Safety interlocks, overload alarms, outrigger monitoring, and optional camera systems enhance both operation and situational awareness.

Designed for lifting heavy equipment, structural steel, precast components, and mechanical installations, the SANY STC800E brings together strong lifting power, intelligent systems, and road efficiency. With its extended reach and modern hydraulic control, it is a versatile machine ideal for both urban construction and remote project sites where setup speed and reliability matter.
