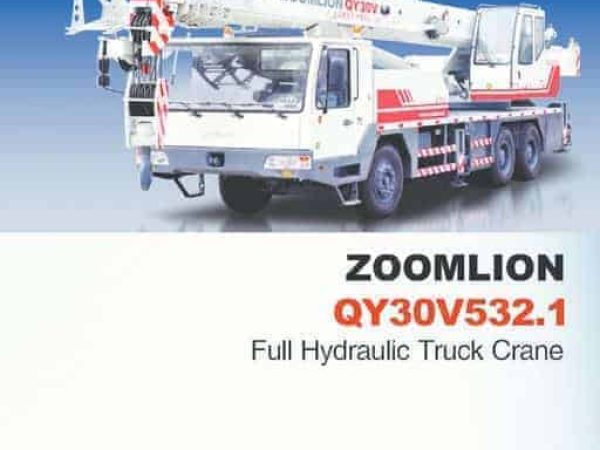

Zoomlion QY30V532.1

The Zoomlion QY30V532.1 is a mid-capacity truck-mounted crane engineered for dependable and versatile lifting performance. Rated at a maximum lifting capacity of 30 tons, it is built on a 3-axle chassis that provides strong mobility and compliance with road transport standards. This makes it suitable for urban, highway, and light off-road transport conditions.

The crane is equipped with a 5-section fully hydraulic boom, extending from 10.5 meters to 40.5 meters, allowing excellent lifting height and working radius without sacrificing structural integrity. The boom is constructed with high-strength steel, and its telescoping system operates via double-acting hydraulic cylinders combined with high-precision sliding mechanisms. An optional 2-stage jib extends from 8.4 meters to 14.6 meters, enhancing the crane’s reach to a maximum lifting height of 55.8 meters when used in combination with the main boom.

Its lifting system is driven by dual winches—main and auxiliary—offering high-speed hoisting capabilities with a maximum single line speed of 120 meters per minute. The slewing system provides a rotation speed of up to 2.5 rpm, supported by a hydraulic motor and slewing ring with an internal gear design, ensuring smooth and accurate load positioning.

The chassis is powered by a WD615.329 diesel engine (manufactured under license from Steyr), delivering 276 HP at 2200 rpm, compliant with Euro II emission standards. The transmission system features a manual 10-speed gearbox with a dual-reduction drive axle and a mechanical steering mechanism on the front axle, supplemented by hydraulic assist. The crane can travel up to 75 km/h and tackle grades of up to 30%, making it efficient for job-to-job relocation.

Outrigger stability is achieved through a H-shaped telescopic outrigger layout, with full extension providing a span of 5.6 meters. The crane uses advanced hydraulic valves and an LMI (Load Moment Indicator) system for real-time feedback on working conditions, with safety cutoffs to prevent overloading.

The operator cab is ergonomically designed for visibility and comfort, featuring safety glass, full instrumentation, joystick controls, and optional heating and cooling systems. All crane functions, including boom telescoping, derricking, winching, and slewing, are controlled through electro-hydraulic proportional systems that support simultaneous multi-function operations.

The Zoomlion QY30V532.1 is a well-balanced lifting solution for mid-range loads, offering a combination of reach, speed, and roadability ideal for general construction, urban infrastructure, and light industrial use.
