Kato KR80H-FM (SL-750Rfii)

The Kato KR80H-FM (SL-750Rfii) is a newly released 75-ton rough terrain crane, boasting advanced features like the six-section high rigidity Super Boom and an array of safety systems. It incorporates state-of-the-art environmental and noise reduction technologies, making it a top choice for projects requiring high efficiency and adaptability in challenging environments.

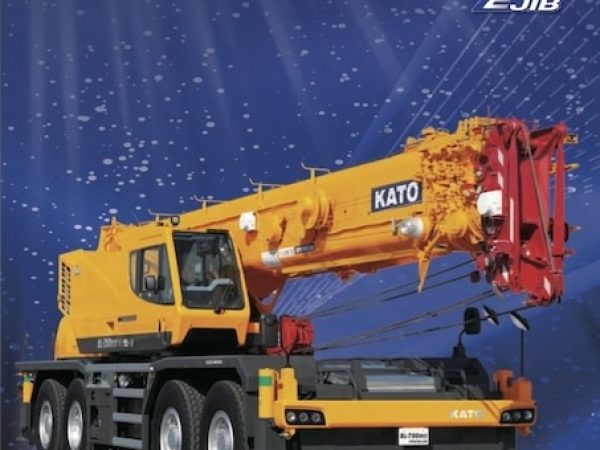

Kato KR80H-FM (SL-750Rfii) Rough Terrain Crane Load Chart

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

Technical Specifications and Features

  • Lifting Capacity: The SL-750Rfii Premium offers a maximum lifting capacity of 75 tons at a 2.3-meter radius, equipped with a Super Boom that extends from 10 meters to 45 meters.
  • Boom Features: The crane’s boom has a variable angle from 0° to 84°, allowing for a wide range of lifting operations. The maximum ground elevation reach is 46 meters, with the boom’s innovative HYBRIDZOOM system combining locking pins and full power for efficient extension and retraction.
  • Jib Capabilities: The jib extends from 9.52 meters to 18 meters with a maximum lifting capacity of 4.2 tons at a 72° angle, capable of reaching up to 64 meters high and covering a maximum working radius of 48.6 meters.

Safety and Environmental Compliance

  • Engine: Equipped with a low-noise engine compliant with 2014 diesel emissions regulations, delivering a maximum output of 275 kW and 1510 Nm of torque.
  • Safety Systems: Includes options for either the KATO Safety View System or a Clearance Sonar System to enhance operational safety, especially during movement.

Advanced Operational Features

  • Ease of Use: Features designed to simplify operations include an easy jib storage and attachment system, reducing the frequency and duration of operator dismounts.
  • Operational Monitoring: Equipped with the K-COR crane operation recording system to streamline diagnostics and maintenance through continuous data logging on an SD card.
  • Visibility and Control: Offers a 12.1-inch vertical large screen monitor, significantly larger than previous models, enhancing monitor size and usability for the operator.

Additional Enhancements

  • User Comfort: The cab’s design maximizes foot space with a button-style shift selector and includes an adjustable sunshade made from fully opaque material to adjust light during operations.
  • Innovative Options: Various optional features include a camera cleaner for the safety system cameras, a wireless load monitoring camera system, and a tire pressure monitoring system to optimize maintenance and operational safety.

This crane sets new standards for safety and environmental friendliness in the rough terrain crane market, aimed at providing the highest level of performance and reliability for demanding construction tasks.
