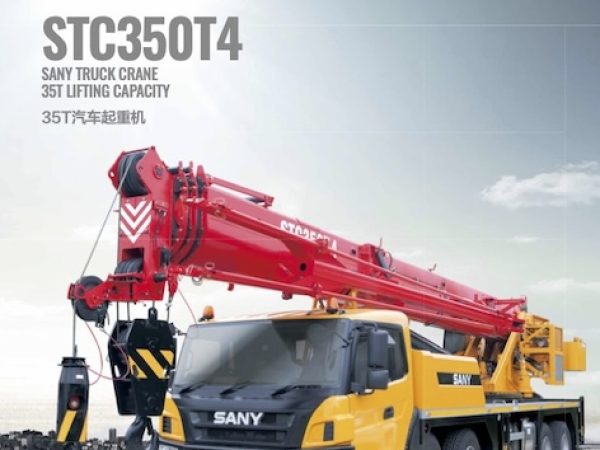

Sany STC350T4

The Sany STC350T4 boasts a substantial maximum lifting capacity of 35 tons, making it suitable for a wide range of lifting tasks. The crane’s overall length is 12,830 mm, and it has an overall width of 2,550 mm, providing a stable base while maintaining a compact footprint for operations in tight spaces. The overall height is 3,670 mm, allowing for operations under various bridge heights and other overhead constraints.

Engine and Power

Powered by an ISLe290 30 (Euro III) engine, the crane provides a potent mix of performance and environmental compliance. The engine delivers a maximum power output of 213 kW at 2100 rpm and a peak torque of 1050 Nm between 1100-1400 rpm, ensuring sufficient power for demanding lifting operations.

Performance Features

The crane is designed with a U-shaped boom that is made up of 4 sections, allowing for a maximum boom length of 35.5 meters when fully extended, plus an additional jib extension that takes the reach up to 43 meters. The maximum lifting height reaches up to 43.5 meters with the full-extension boom and jib, providing ample height for various construction needs. The crane also features different jib offset angles (5, 15, 30 degrees) enhancing its versatility in multiple lifting scenarios.

Mobility and Usability

The Sany STC350T4 is equipped with an 8 x 4 x 4 wheel formula, facilitating better maneuverability and stability. It offers a steering radius of 10 meters and a minimum steering radius of the boom tip at 12 meters. The crane also achieves a maximum travel speed of 90 km/h, making it efficient for moving between job sites. The outrigger span measures 5.18 x 6.4 meters, ensuring stability during lifting operations.

Additional Features

Fuel efficiency is a key aspect of the STC350T4, with a consumption rate of 32 liters per 100 km. The crane operates effectively within a temperature range of -25°C to 40°C, proving its resilience in diverse working environments. The ground clearance of 240 mm allows it to handle rough terrain, while the maximum gradeability of 40% shows its capability on steep inclines.

Overall, the Sany STC350T4 is a robust and efficient crane designed for a variety of lifting applications, combining high capacity, reach, and technical sophistication to meet the demands of modern construction projects.
