Zoomlion ZTC1000

The Zoomlion ZTC1000 is a 100-ton hydraulic truck crane, designed for high lifting performance, precise control, and superior mobility. It features a six-section telescopic boom, extending from 13.5 meters to 63 meters, and a two-section jib (11m and 18.6m) with a maximum offset of 30°, reaching a maximum lifting height of 82.5 meters (or 90.5 meters with an additional extension installed). With a maximum lifting moment of 4,000 kN·m, it delivers powerful and efficient lifting capabilities. The crane is built on a 5-axle chassis, offering excellent maneuverability with a top speed of 75 km/h and a gradeability of 40%. Integrated electro-hydraulic proportional control, load-sensing slewing, and intelligent safety systems make the ZTC1000 an optimal solution for heavy-duty lifting applications in construction, infrastructure, and industrial sectors.

GET SPEC SHEET

somdn_product_page

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

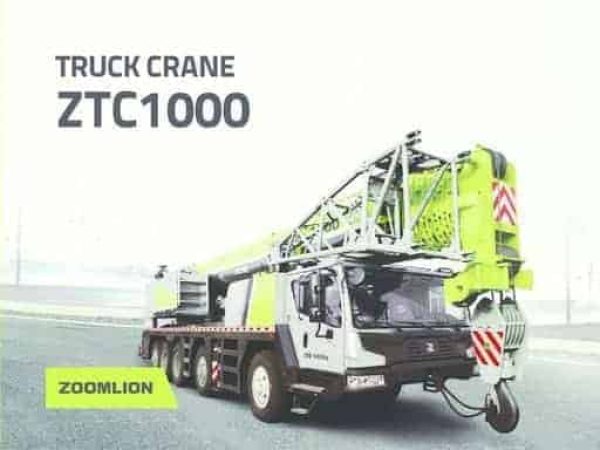

thumbnail of ZTC1000_spec_mt_en

Product Description

The Zoomlion ZTC1000 is a high-capacity 100-ton truck-mounted hydraulic crane, engineered to deliver exceptional lifting capabilities, precise movement control, and advanced safety features. The crane is equipped with a six-section U-shaped telescopic boom, made from high-strength steel, extending from 13.5 meters to 63 meters, providing enhanced structural stability and reduced deflection. The two-section jib (11m and 18.6m) with adjustable offsets of 0° and 30° further extends the lifting reach to a maximum height of 82.5 meters (or 90.5 meters with an additional extension installed). The maximum lifting moment of 4,000 kN·m ensures exceptional lifting performance for large-scale projects.

The ZTC1000 is powered by a high-efficiency diesel engine, optimized for fuel savings and reliable power output. It achieves a maximum driving speed of 75 km/h and a gradeability of 40%, making it ideal for long-distance travel and off-road operations. The minimum turning diameter of ≤23 meters provides enhanced maneuverability, while the ground clearance of 300 mm allows for smooth operation on rough terrains.

For lifting efficiency, the ZTC1000 is equipped with dual high-speed winches, delivering a main hoist rope speed of 110 m/min (at the 5th layer) and an auxiliary hoist rope speed of 75 m/min (at the 3rd layer), ensuring fast and precise lifting. The boom derricking time is 70 seconds, while boom telescoping takes 130 seconds, allowing for rapid setup and operation. The slewing system features a speed range of 0 – 1.5 rpm, with load-sensing technology, ensuring smooth rotation and accurate load positioning.

The 5-axle chassis is designed for stability and durability, providing excellent load distribution and driving stability. The outrigger system offers a fully extended transversal width of 7.6 meters and an intermediate width of 5.6 meters, ensuring optimal stability during lifting operations. The tail slewing radius of 8.05 meters further enhances load balance and operational safety.

Operator comfort and safety are prioritized in the ZTC1000. The spacious, ergonomically designed cab features climate control (AC and heater), an adjustable seat, and an intuitive control panel, ensuring a comfortable and user-friendly working environment. The crane is equipped with an advanced electro-hydraulic proportional control system, utilizing a load-sensing directional valve system, ensuring optimized energy efficiency, smooth movement coordination, and reduced operational fatigue.

Safety features include a load moment indicator (LMI), relief valves, balance valves, and emergency stop functions, ensuring secure and stable operations. The crane meets GB3847-2005 and GB17691-2005 (National Stage II) environmental and emission standards, ensuring compliance with modern regulations.
