Sany SRA1000A Load Chart PDF + Specifications

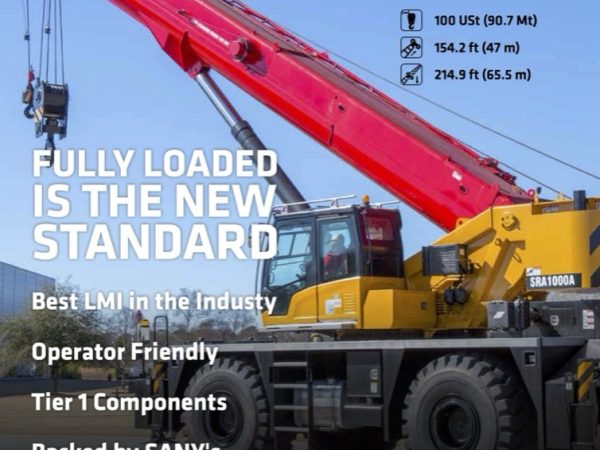

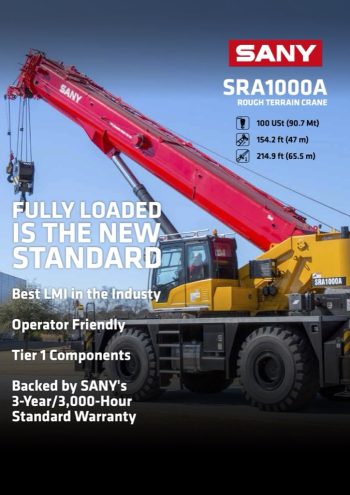

The SANY SRA1000A is the flagship model in SANY’s rough terrain lineup, delivering enhanced lifting performance, mobility, and operator convenience over its smaller sibling, the SRA750A. Designed for heavy-duty applications such as bridge construction, wind turbine support, steel erection, and large-scale general construction, the SRA1000A blends power and precision with excellent transportability and control systems.

At the core of its lifting system is a five-section, full-power boom extending from 41.5 ft (12.65 m) to 154.3 ft (47 m). The crane also includes a two-piece hydraulically power-assisted lattice jib, extending up to 59.1 ft (18 m) for a total lifting height beyond 210 ft (64 m). This setup gives the SRA1000A significant reach and flexibility across a range of heavy lifting scenarios.

The crane is powered by a Cummins QSB6.7 Stage V diesel engine rated at 284 hp (212 kW) and delivering 950 lb·ft (1288 Nm) of torque at 1500 rpm. It’s paired with a Dana automatic transmission and rugged Kessler axles, providing four-wheel drive, high traction, and four steering modes for excellent off-road capability and jobsite maneuverability. The chassis supports a maximum transport weight of 100,000 lbs (45,360 kg) with the main boom and essentials onboard, while the hydraulically removable counterweight is detached via a dedicated wired remote control, requiring only one additional transport load.

The crane is equipped with powerful winches offering up to 23,900 lbs (10,840 kg) of line pull and 492 ft/min (150 m/min) wire rope speed, ensuring efficient hoisting and precise load control. A third wrap indicator with automatic function kick-out adds an extra layer of operational safety.

The operator cab tilts up to 20° for improved visibility during high-angle lifts and is equipped with a climate control system, enhanced insulation, and an electronic extendable catwalk for safer access during inspection or maintenance. Inside, the operator is supported by a 10.1-inch full-color touchscreen Load Moment Indicator (LMI) that offers a user-friendly, pictorial interface. It simplifies access to boom data, load charts, diagnostics, and operational parameters without digging through complex menus.

Safety and visibility are prioritized with:

• Multiple tie-off points
• Comprehensive work light and camera packages
• Virtual wall with function kick-out
• Fine inching control
• High-resolution rear and side cameras for 360° awareness

Overall, the SRA1000A is a best-in-class 100-ton RT crane combining field-proven components, operator-centered features, and top-tier lifting capacity. It’s built to thrive in rugged environments where power, reliability, and smart control are critical. The model is backed by SANY’s industry-leading 3-year/3,000-hour standard warranty, providing peace of mind to owners and operators.
